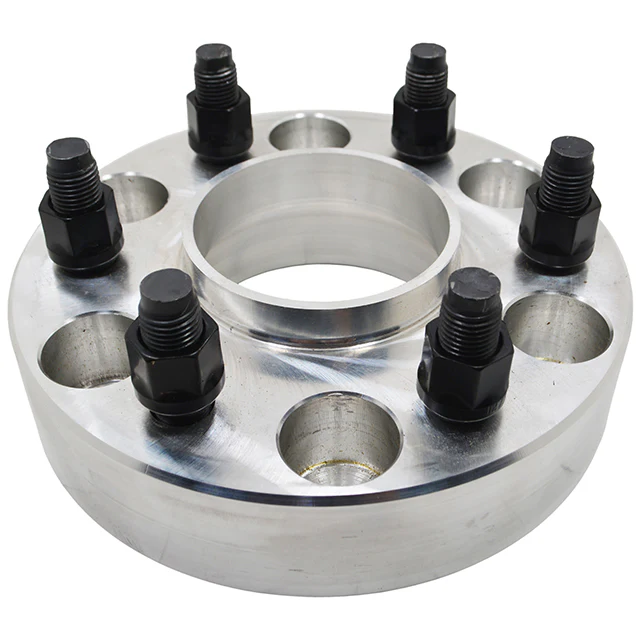

Fully Hub Centric

Some Sizes Made to Order: This product takes about 7-10 business days to ship.

Sold As: 1 Pc Or Complete Set of 4 - Wheel Spacer with Mounting Lug Nuts

Custom Sizes: Looking for a custom size or thickness? Give us a call at (310) 763-1437.

Features

• Compatible with factory and aftermarket wheels
• Hub/Wheel Centric – no vibration at high speeds
• Corrects improper wheel offsets
• Provides an aggressive stance and improved look
• 6061 T-6 billet aluminum construction
• Designed for extreme duty; safe for towing
• Includes all mounting hardware
• Limited lifetime warranty
• Made in Lynwood, California, USA

Specifications

• Vehicle Bolt Pattern: 6x5.5" ( 6x139.7 MM )
• Vehicle Hub Bore: 77.8 MM
• Wheel Bolt Pattern: 6x5.5" ( 6x139.7 MM )
• Wheel Bore: 77.8 MM
• Thread Pitch: 14x1.5
• Thickness: 1" - 5"
• Lip Thickness: 0.38"
• Material: Billet Aluminum 6061 T-6
• Hardware: Grade 8
• Finish: Raw Aluminum
• Torque Specs: Use factory specs

Vehicle Compatibility

Compatible Models

Year	Make	Model	Hub Bore
2019-2025	Ram	1500 + TRX	77.8 MM

Installation Instructions

• Studs must not extend past the spacer face; trim if needed
• Minimal trimming required for adapters 1.5" or thinner
• Use factory torque specs when mounting
• Use blue or red Loctite on vehicle stud side
